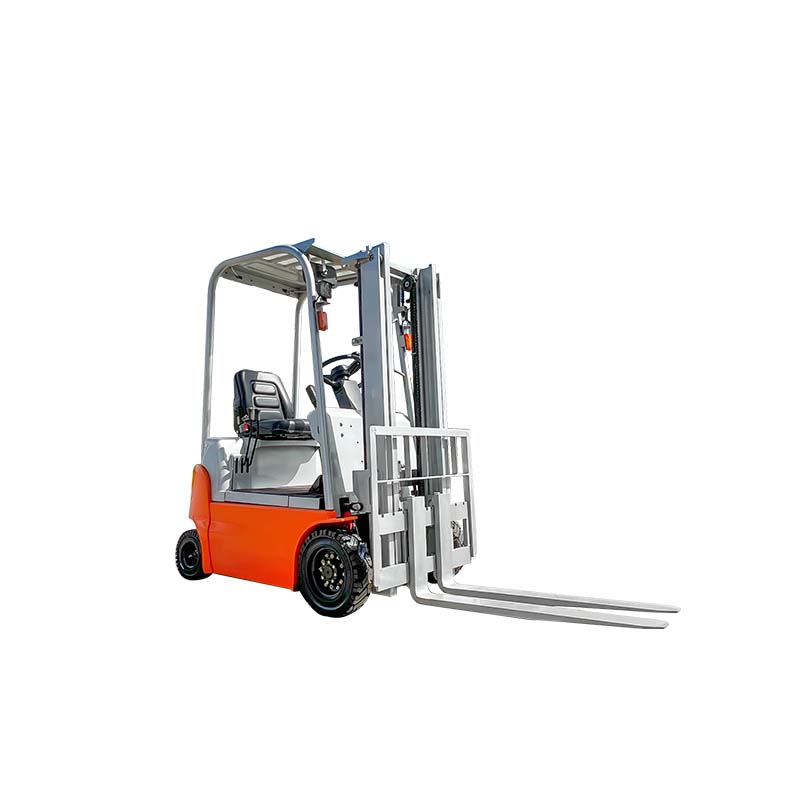

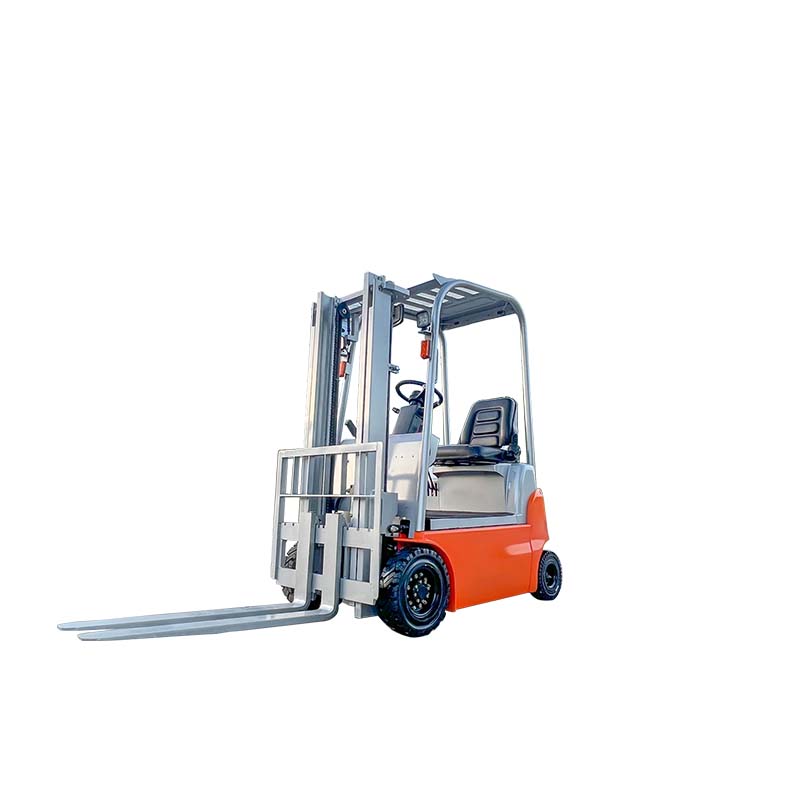

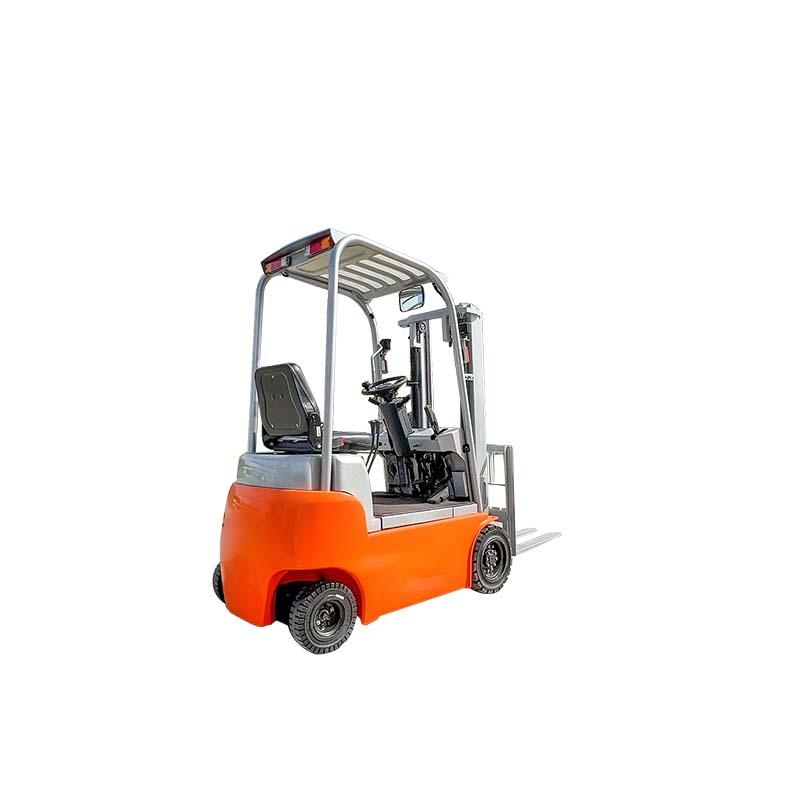

The CPD10 is a high-performance lithium-ionn electric forklift designed to enhance your material handling operations with efficiency and reliability. This seated forklift has a rated lifting capacity of 1000 kg and is ideal for a variety of light to medium-duty operations in warehouses, workshops, and logistics centers.
Item No :
Electric ForkliftModel :
CPD10Terrain Adaptability :
Outdoor PavementOrder(MOQ) :
1Condition :
NewApplicable Industries :
Machinery Repair ShopsIntroducing the CPD10, a high-performance accumulator-driven forklift designed to streamline your material handling processes with efficiency and reliability. This seated model boasts a rated load lifting capacity of 1000 kg and a load center distance of 400 mm, delivering stable and safe performance when moving goods in warehouses, factories, or logistics facilities.
The CPD10 1 Ton Lithium Battery Electric Forklift is designed for efficient warehouse and industrial material handling. Equipped with a high-performance drive motor, maintenance-free lithium battery system, reinforced mast structure, and ergonomic operating design, this electric forklift delivers stable performance, flexible maneuverability, and lower operating costs for various working environments.
Key advantages include:
| Model Specifications | Data Value |
|---|---|
| Model | CPD10 |
| Power Type | Accumulator |
| Rated Load Lifting Capacity | 1000kg |
| Load Centre Distance | 400mm |
| Driving Style | Sit Down |
| Length(with fork) | 3020mm |
| Length(without fork) | 1920mm |
| Width | 930mm |
| Lowered Mast Height | 2013mm |
| Overhead Guard Height | 1995mm |
| Wheel Base | 1355mm |
| Front Overhang | 315mm |
| Rear Overhang | 280mm |
| Front Wheel Track | 806mm |
| Rear Wheel Track | 780mm |
| Minimum Ground Clearance | 103mm |
| Standard Lifting Height | 2800mm |
| Free Lifting Height | 0mm |
| Minimum Turning Radius | 1760mm |
| Minimum Right-angle Channel Width | 2935mm |
| Gantry Angle (front/rear) | 5/10° |
| Maximum Lifting Speed Without Load | 320mm/s |
| Maximum Lifting Speed With Full Load | 250mm/s |
| Maximum Operating Speed Without Load | 12km/h |
| Maximum Operating Speed With Full Load | 11km/h |
| Max Gradeability with Full Loading | 10% |
| Weight Unladen | 1800kg |
| Number of Wheels =Driving Wheels/Steering Wheels | 2/2 |
| Tyre Type (front/rear) | Pneumatic tyre |
| Tyre Size(front) | 5.00-8 |
| Tyre Size(rear) | 15×4*1/2-8 |
| Brake/Driving Brake | EMBR |
| Parking Brake | EMBR |
| Battery Voltage/Capacity | 60V/105AH |
| Drive Motor Power | 3kw |
| Oil Pump Motor Power | 3kw |
Q: How about your MOQ?
A: MOQ is flexible depending on different models and order requirements.
Q: Do you offer customization service?
A: Yes, we could print your brands (logo, artwork) on the products/packages or laser engraving your brand. Samples for development are also warmly welcomed. We have rich experience in developing and modifying it.
Q: Which payment method does your company support?
A: T/T is preferred. The payment method is flexible and changeable, and we can discuss the specific situation in detail according to the order. We will do our best to meet your needs.
Q: How about the delivery time?
A: Normally, 7-10 workdays for the most popular times.
Q: How to confirm a spare part ?
A: Usually, there are the following steps to confirm a spare part:
(1) Send us the information you have (OEM numbers, photos, specifications, forklift models, etc.)
(2) Quote and send you photos and other details for confirmation.
(3) Discuss about all details you want to know (packing, delivery terms, etc. )
Q: Do you provide sample?
A: It depends,we would provide samples, but the cost is supposed to be paid by the buyers.
